Let's go to the Earth Park ! The final game of The 2nd Championship for the King of LEGO Created in Oct 2005 / Sachiko Akinaga

Mechanism of "Earth Park !"

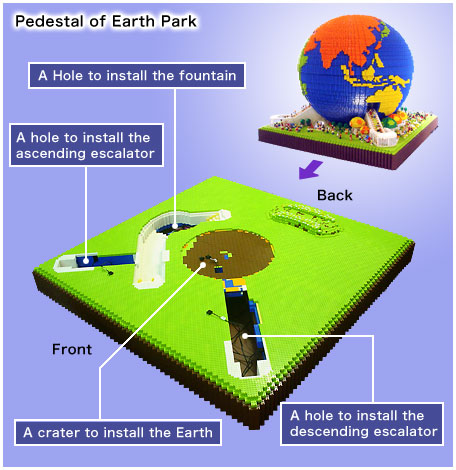

There are some holes on the pedestal of Earth Park. The size is 1,200(W)x1,200(D)x120(H)mm.

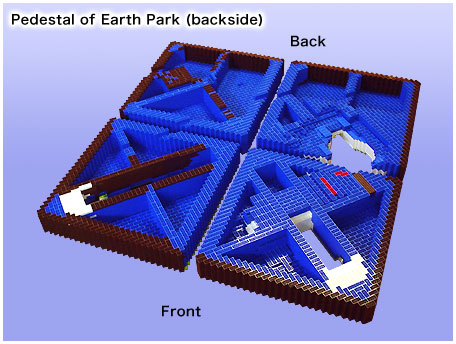

The pedestal can be divided into four parts. (This is the backside of pedestal.)

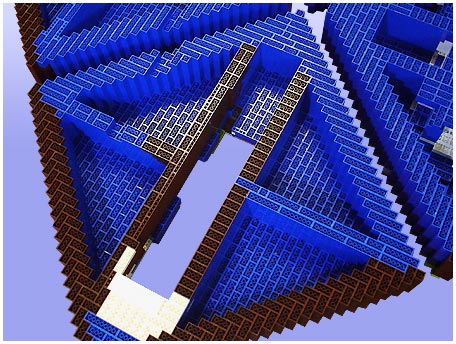

This is a hole to install the escalator. The pedestal is assembled, fitting in the installation angle.

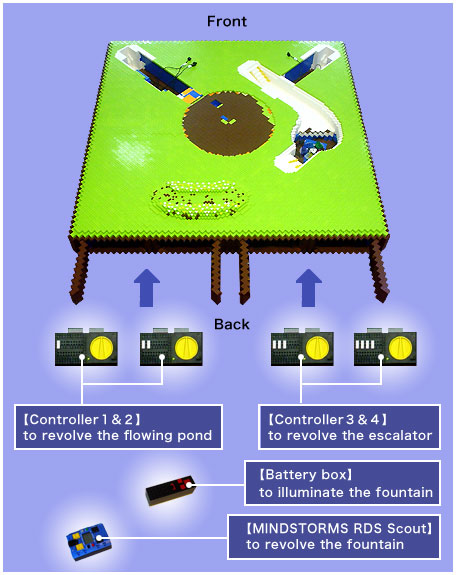

Inside the pedestal, there are some controllers and a battery box placed.

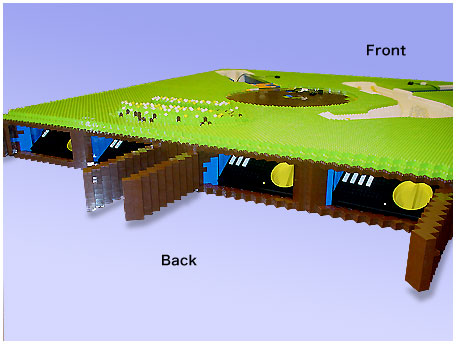

And then, just shut the door! It's simple !

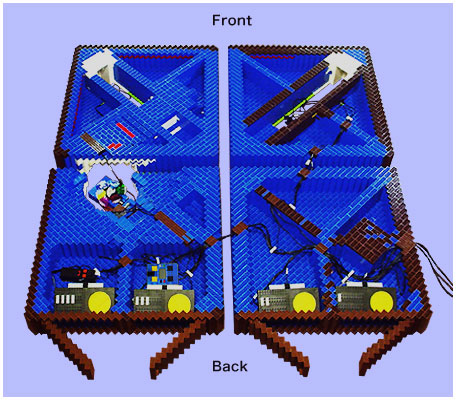

This is a look of wiring system, seeing from the backside. (It's inverted.)

Fix the cords with this kind of stopper.

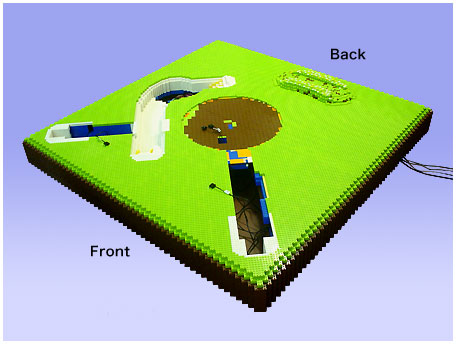

When you finish the wiring system, interface the four pedestals with a lime color brick part (upper grass part).

And then, set up the fountain. * About the fountain, please check the "Mechanism of Fountain".

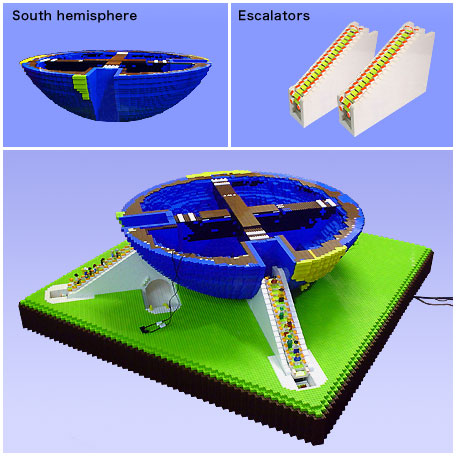

In the middle of the pedestal, place the south hemisphere of earth. And then, mount the escalator from above. The south hemisphere can be also divided into four parts. * About the escalator, please check the "Mechanism of Escalator".

With a reinforced crisscross part built with technique bricks, fix the four parts of south hemisphere tightly.

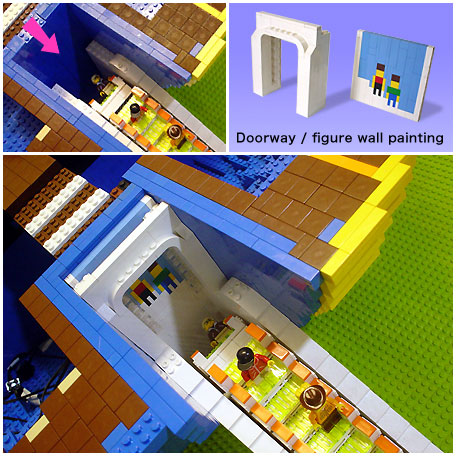

Between the south hemisphere and the escalator, set up a doorway and a figure wall painting with dots.

Put a cover on the south hemisphere. The cover is also divided into four parts.

There is a hole on the front cover to put the wiring cords through.

Fix the joints of the four covers with plates and tile-bricks.

With the figure wall painting, you can make the depth of the building !

On this, install a circular rail track.

The rail track is the mechanism to revolve the "flowing pond". Set the wiring cords to two spots.

As you have to set a ship of Whale and a ship of Alligator on the "flowing pond", you need two controllers to send power.

Place a rolled pedestal on the center of the cover. This is a part to set up Panda and Elephant.

There are two holes for the wiring cords on the rolled pedestal.

Lay out the trains on the rail track. They are the parts to put the "flowing pond"/a ship of whale/a ship of alligator.

Each train for both whale and alligator has six carriages. In fact, five out of six are motorized carriages.
