Mechanism of "Earth Park !"

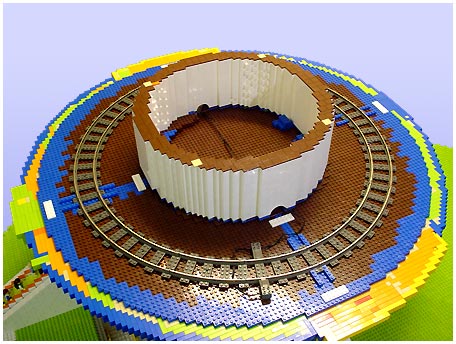

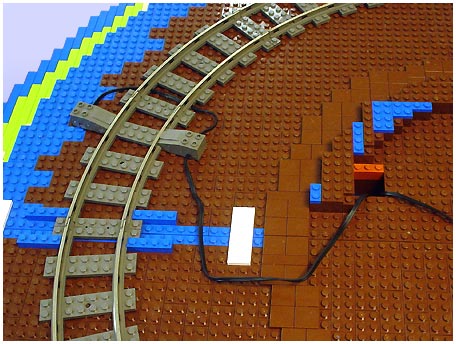

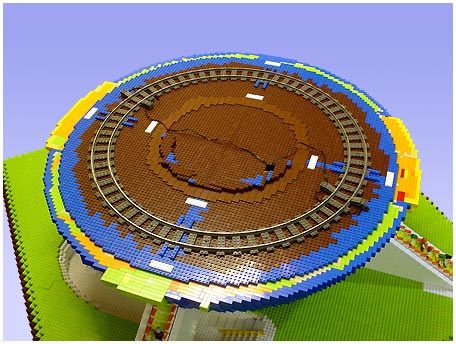

The rail track is the mechanism to revolve the "flowing pond". Set the wiring cords to two spots.

As you have to set a ship of Whale and a ship of Alligator on the "flowing pond", you need two controllers to send power.

Place a rolled pedestal on the center of the cover. This is a part to set up Panda and Elephant.

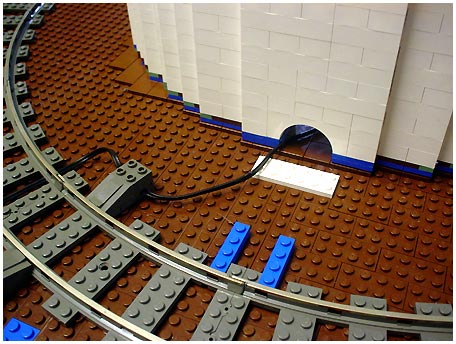

There are two holes for the wiring cords on the rolled pedestal.

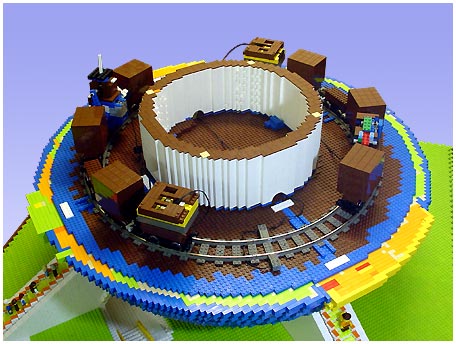

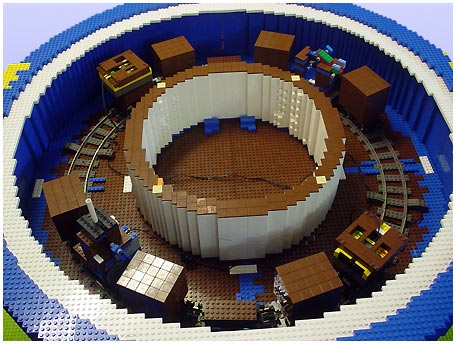

Lay out the trains on the rail track. They are the parts to put the "flowing pond"/a ship of whale/a ship of alligator.

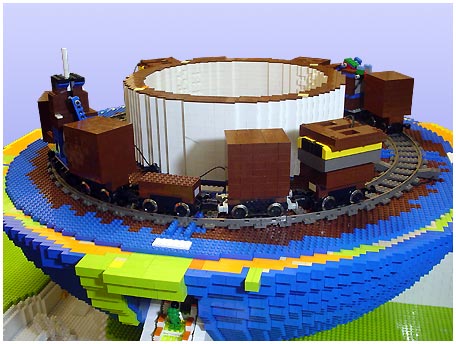

Each train for both whale and alligator has six carriages. In fact, five out of six are motorized carriages.

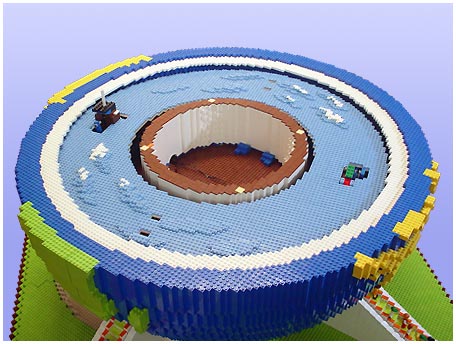

It's coming along! (^o^)/ Put the "flowing pond" on it.

There are holes on the plate-brick-three-staged "flowing pond" to fit in the mechanisms for both Whale and Alligator. You can see the head of the mechanisms come up from the holes.

Install the yellow-green land in the center.

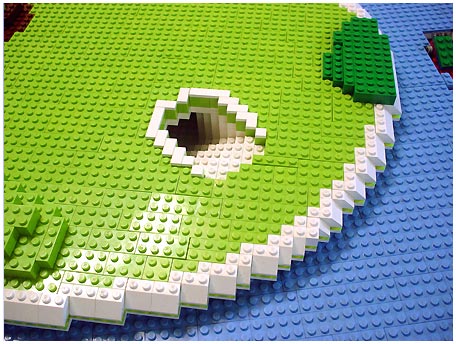

This part is a staircase of Panda belly.

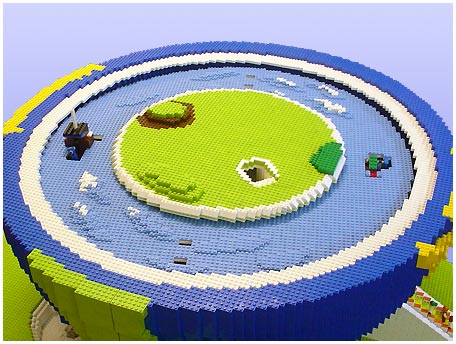

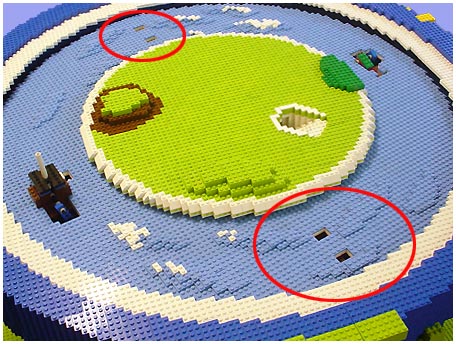

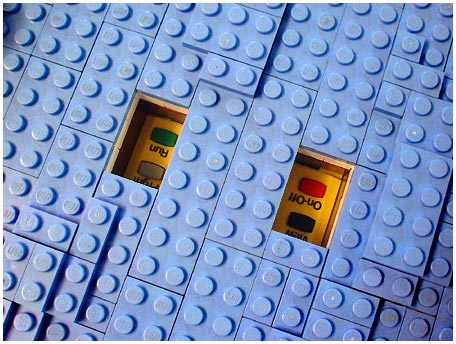

Besides the holes for the mechanism, there are four small holes on the pond.

You can operate the MINDSTORMS in the holes.

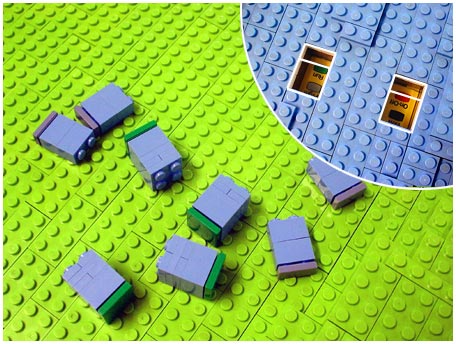

Mount the blue-button-parts in the holes.

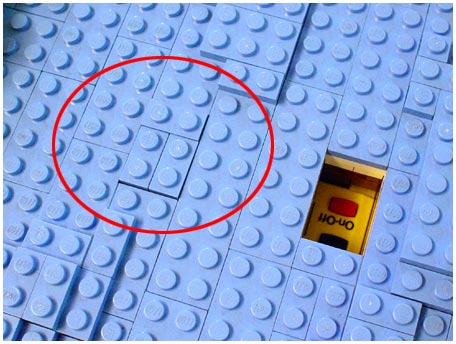

This shows a button-part mounted in one hole. When you slightly push the button, you can also push the MINDSTORMS.

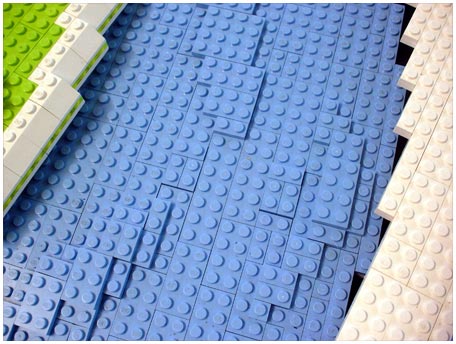

When you mount the both button-parts…Look! You can't distinguish them from other-parts, can you?

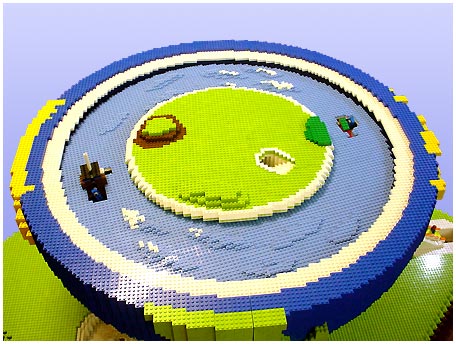

The south hemisphere is now completed !

After that, lay out the animals! And place the mini-figs ...

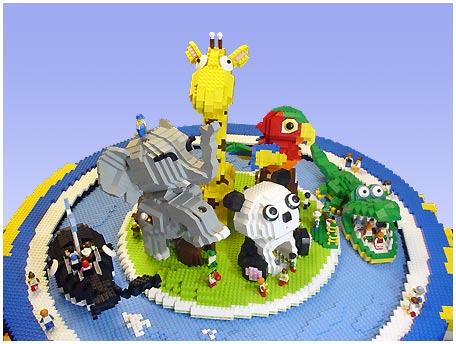

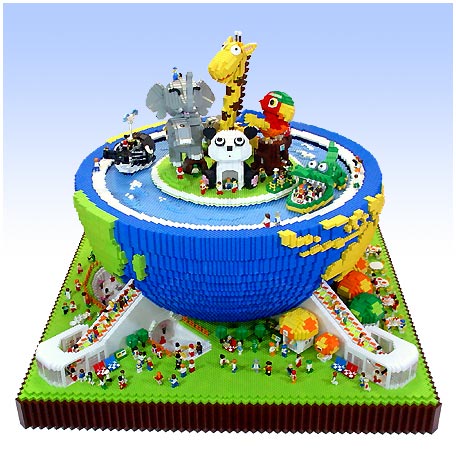

Earth Park is completed !
When you revolve the "flowing pond", the ship of Whale and the ship of Alligator sail forward, with the Whale blowing water and the Alligator swinging its tail !



Let's go to the Earth Park !
